Smart Tables are a structured data management feature within the Knowledge Base (KB) that allow you to store, organize, and extract information in a tabular format. Unlike standard spreadsheets, Smart Tables are integrated with AI capabilities, enabling automatic data extraction from documents, relationship mapping between different data sets (Collections), and direct querying via AI Agents.Key capabilities include:

Defining structured schemas — columns, data types, and formats
Extracting data automatically from uploaded files (e.g., Resumes, Invoices)
Visualizing data through built-in dashboards
Querying table data using natural language via Agents

Accessing Smart Tables

Smart Tables are accessed through the Knowledge Base (KB) section of the application. Once created, you can view and manage your Smart Tables by navigating to the KB Data section, where all tables are listed and can be opened for viewing or editing.

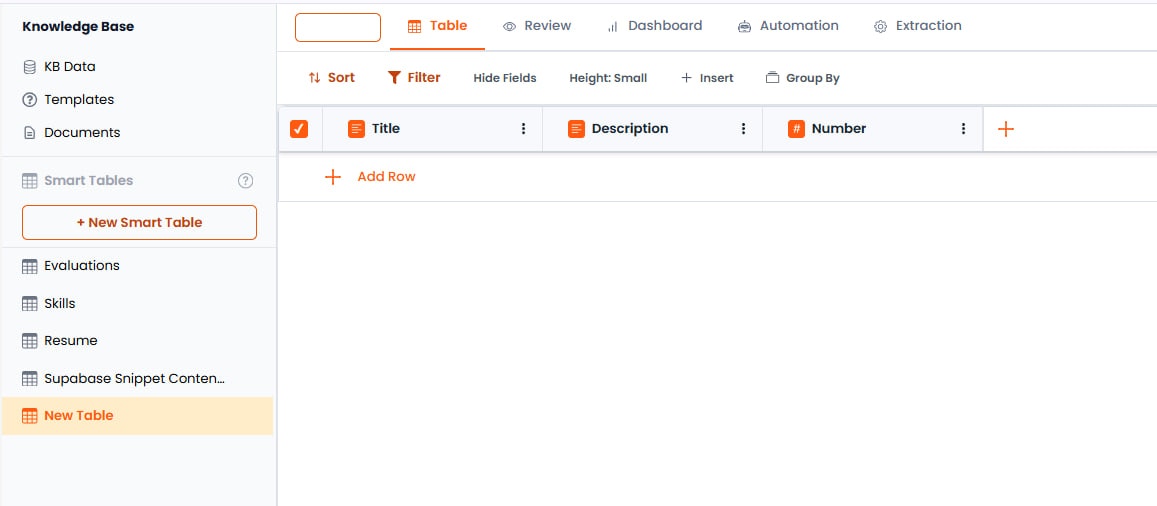

KB Data section showing list of Smart Tables

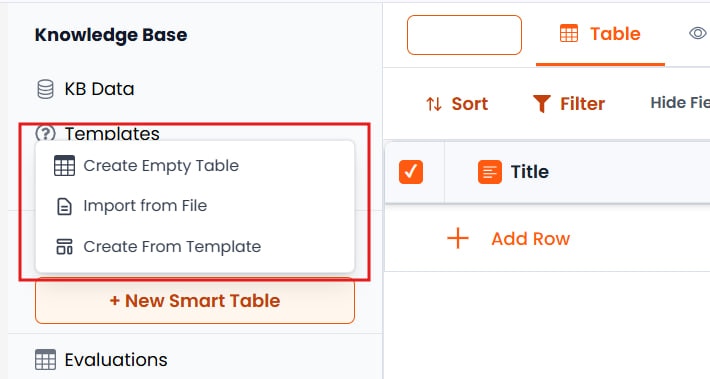

Creating Smart Tables

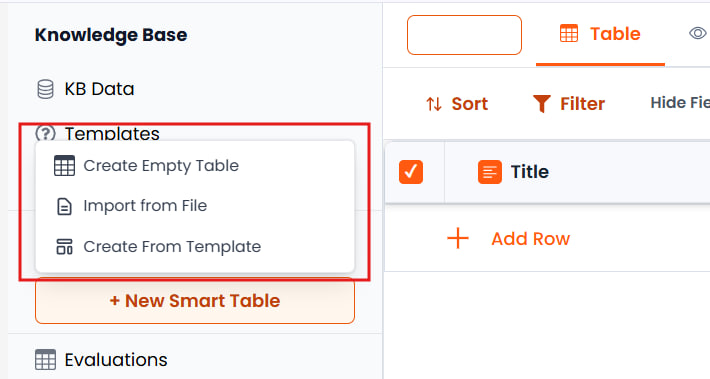

There are three primary methods to create a Smart Table within the Knowledge Base. Access these options by clicking the creation menu in the KB interface.

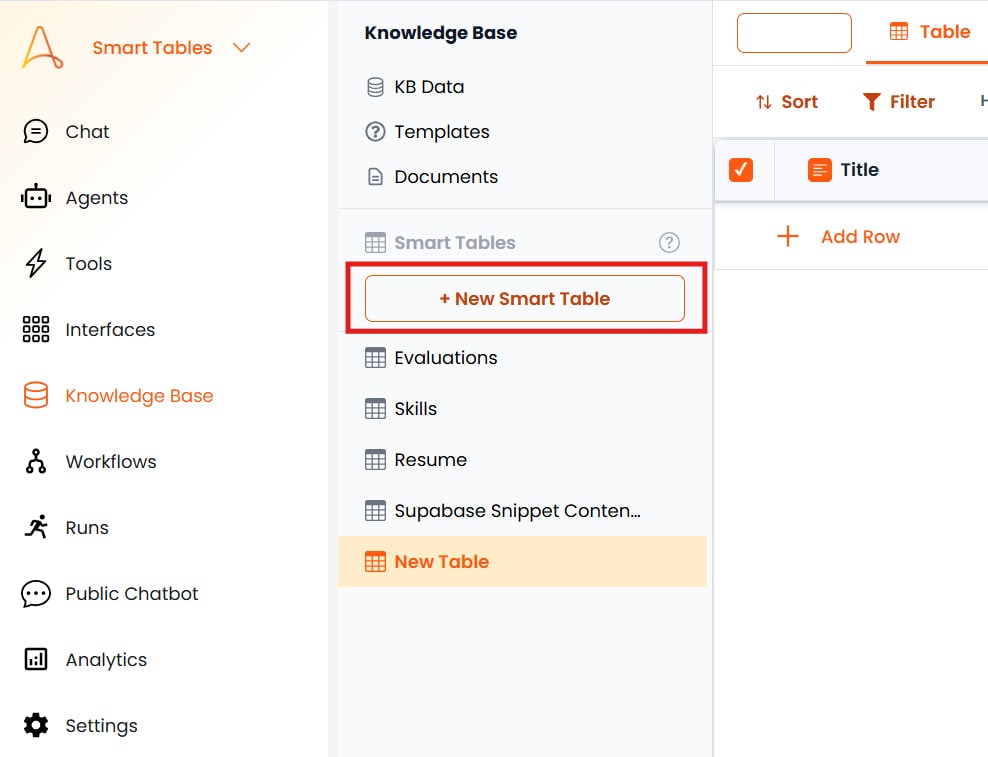

Method A: Create Empty Smart Table

This option creates a blank table with default system columns (Title, Description, Number). A sidebar configuration panel opens automatically, allowing you to define your custom schema from scratch. You can keep these default fields, modify them, or delete them to create your own structure.

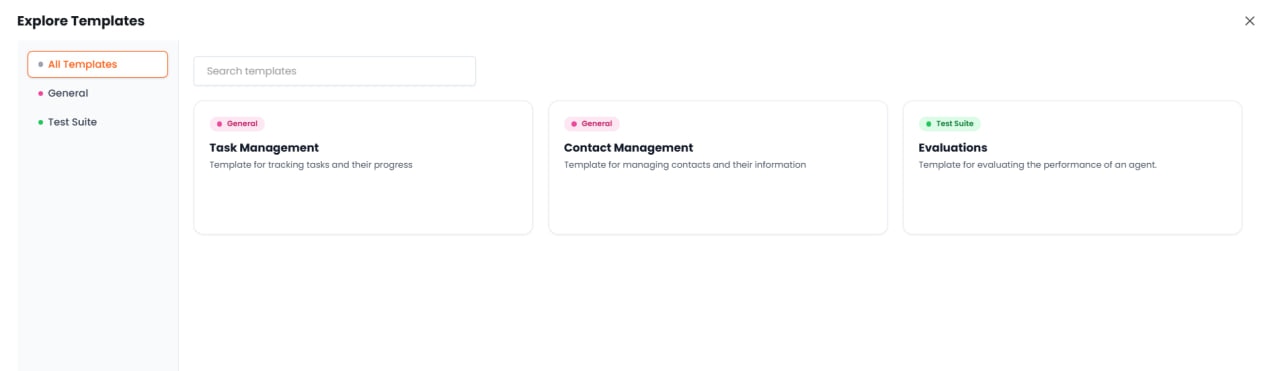

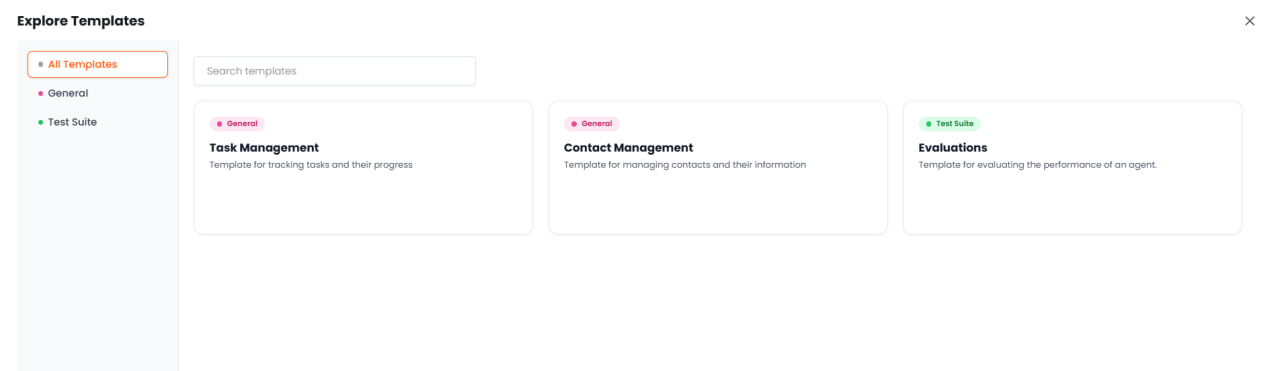

Method B: Create from Template

You can select from pre-defined templates to quickly set up tables for common use cases. Multiple templates are available for different scenarios. For example, the Evaluations Template imports a pre-defined set of columns designed for testing agent responses (Question Text, Expected Answer, Actual Response).

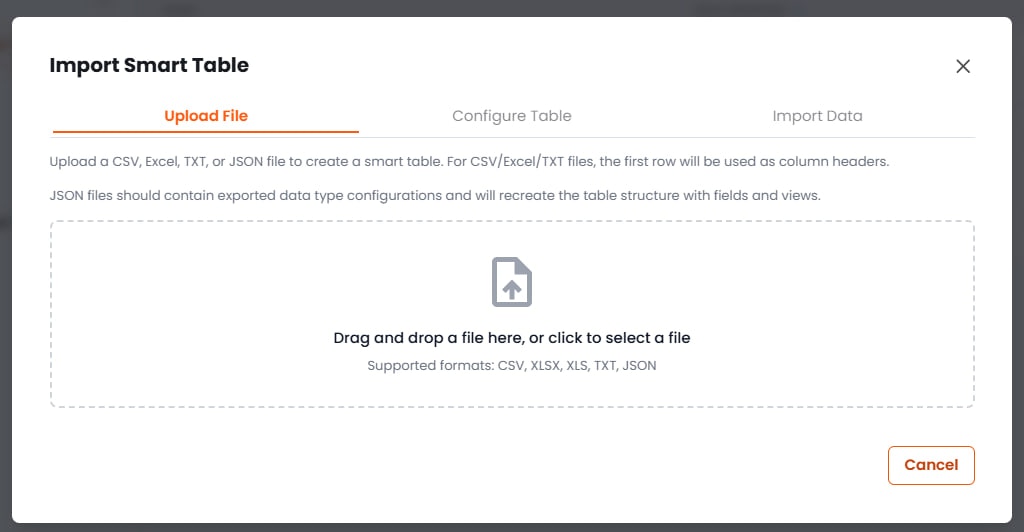

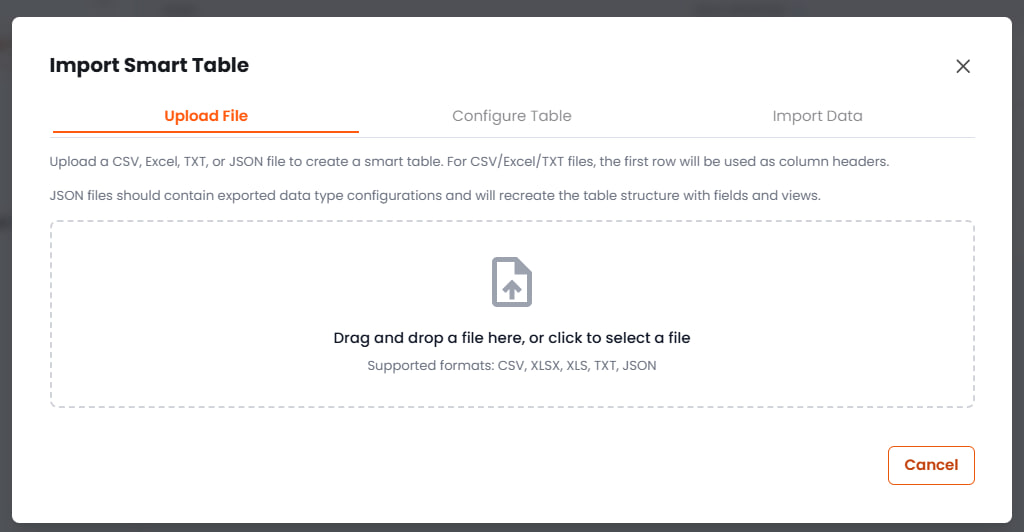

Method C: Import from File

You can upload a CSV file to automatically create a Smart Table. The system will parse the CSV headers to create columns and import the rows as data entries.

Column Types and Configuration

When configuring a Smart Table, each column requires specific definitions to ensure accurate data storage and extraction. A column consists of a Name, Type, Format, and Tool Source.

Providing a clear Description for each column is critical. This description guides the Large Language Model (LLM) on what specific information to extract or generate for that field.

Configuring Columns

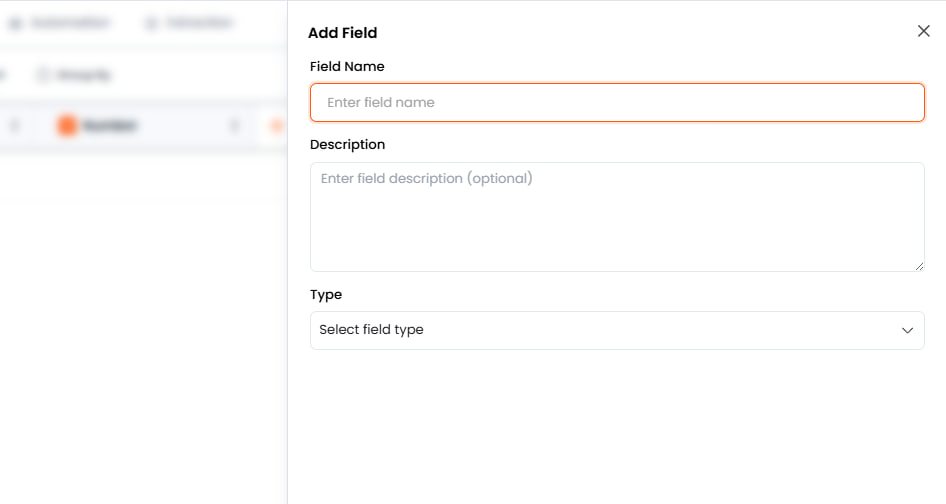

When creating or editing a Smart Table, use the sidebar panel to configure each column. After setting up a field’s properties (Name, Type, Format, Tool, and Description), click Save Field to apply the configuration. You can edit existing fields at any time by clicking on the field name in the column configuration panel, making changes, and saving again.

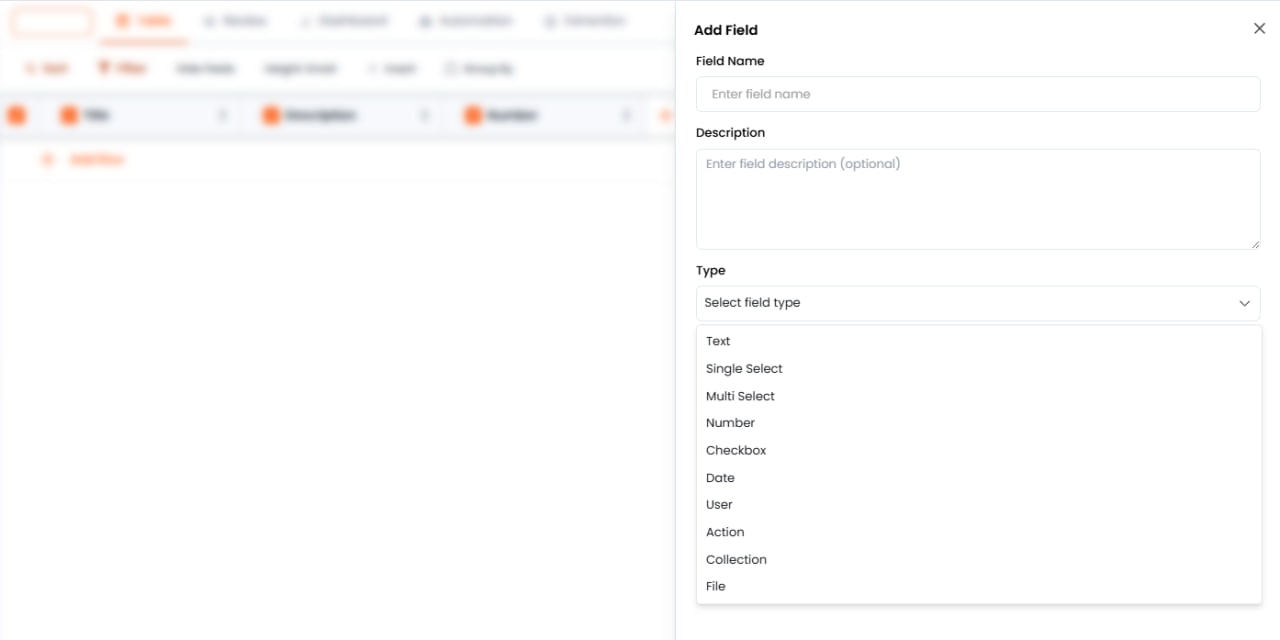

Field Types and Formats

Field Type	Description	Format Options
Text	Standard alphanumeric string	Text, Phone Number, Email
Number	Numeric values	Number, Decimal, Currency
Single Select	Select one value from a predefined list	Dropdown with options (e.g., Skill Level: Beginner, Intermediate, Expert)
Multi-select	Select multiple values from a predefined list	List of options (e.g., Languages: Python, Java, HTML, CSS)
Checkbox	Boolean values (True/False)	True/False (e.g., Is Female?)
Date	Calendar dates	Date formats (DD/MM/YYYY, etc.)
User	Reference to a user in the system	Username or User Email
File	Attachment field for documents	File upload
Collection	Link to another Smart Table (relational)	Select target Smart Table

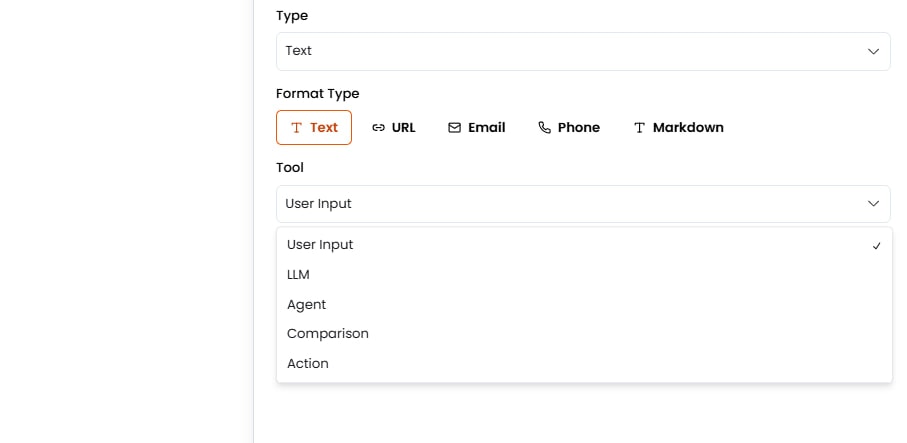

Tool Sources

The Tool setting defines how data enters the cell:

User Input — Data is manually entered by the user or extracted directly from a file without modification
LLM Generated — The AI model generates the content based on the column description and context (e.g., summarizing a resume)
Agent Generated — An Agent processes a query and populates this field with the response
Comparison — Compares two fields and determines if they match or calculates similarity scores

Data Extraction (Document Processing)

Smart Tables can automatically populate rows by extracting data from uploaded documents. This is particularly useful for processing standardized documents like resumes or forms. Each uploaded document creates one row in the Smart Table, though multiple documents can be uploaded and processed to create multiple rows in the same table.

Workflow: Resume Extraction Example

Define Schema

Create a Smart Table named “Resumes” with the following columns:

Name (Text)
Contact Number (Text — Phone Number format)
Years of Experience (Number — Decimal format)
Languages (Multi-select: Python, Java, HTML, CSS)
Is Female (Checkbox)
Resume File (File)

Upload Document

Navigate to the Knowledge Base and upload a file (e.g., a PDF resume).

Assign Smart Table

During upload, select the “Resumes” Smart Table.

Extraction

The system processes the document and maps content to the defined columns — for example, finding “3 years” in the text and populating Years of Experience, or extracting a phone number for Contact Number.

Review Results

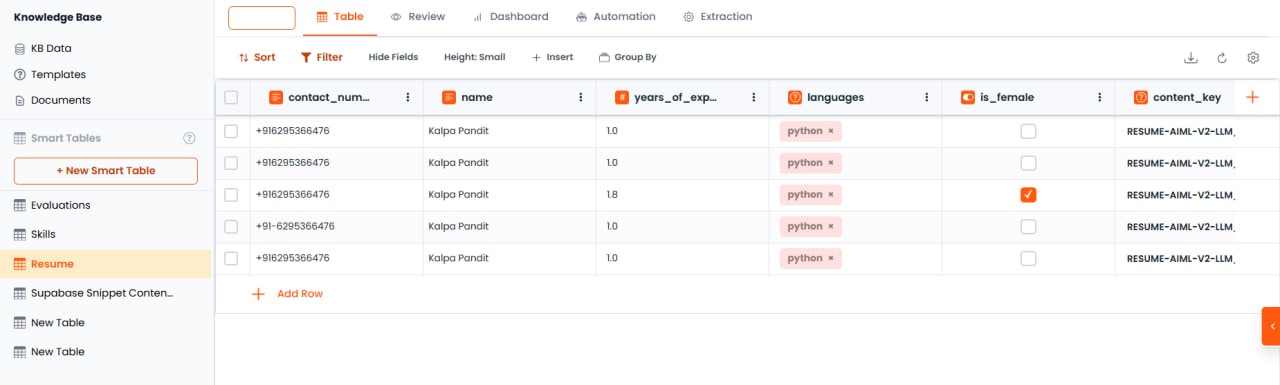

Navigate to the Smart Table to view the newly created row with extracted data.

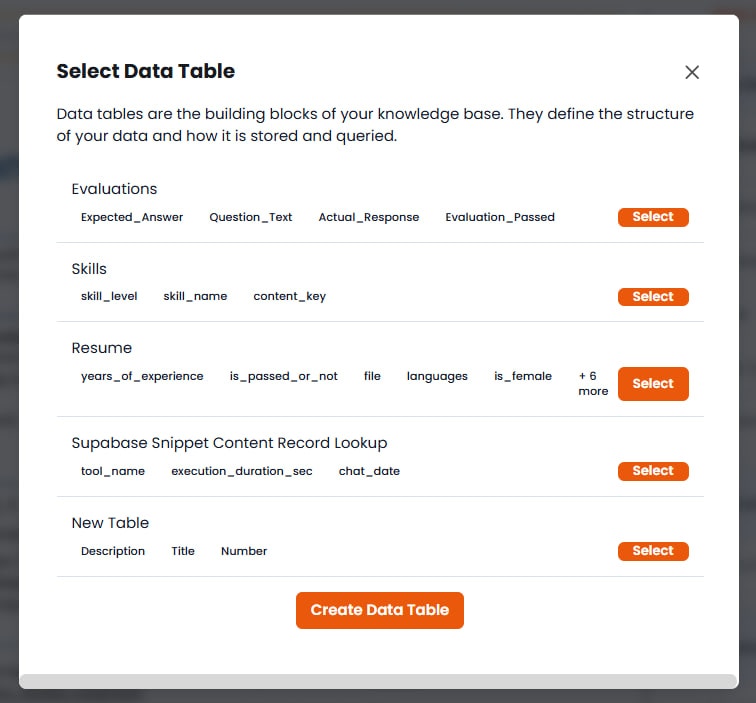

File upload modal with Smart Table assignment

If a file is uploaded without an assignment, it can be assigned later via the document settings. Go to the document, click Assign Smart Table, select the target Smart Table, and click Apply to trigger the extraction process retroactively.

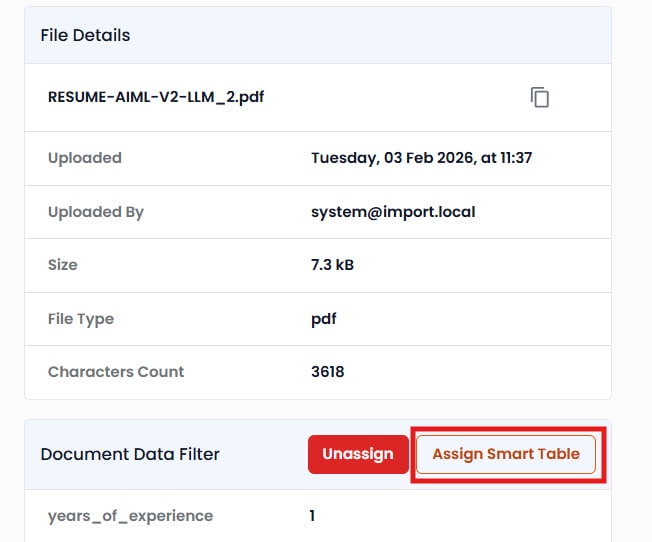

Document settings with Smart Table assignment

Enable Quick Upload when assigning a Smart Table during upload to automatically extract and populate data as soon as the file upload completes.

Collections and Relationships

Collections allow for many-to-many mappings between Smart Tables. This is useful when a single row in a main table contains complex list data that requires its own structure.

Example: Skills Mapping

Instead of storing skills as a simple comma-separated string (e.g., “Python, Java”), you can create a relational structure with detailed skill information:

Create “Skills” Table — Define columns:
- Skill Name (Text) — Name of the skill the user possesses
- Skill Level (Single Select) — Options: Beginner, Intermediate, Expert
Configure Main Table — In the “Resumes” table, create a column named “Skills”.
Set Type to Collection — Set the column type to Collection and link it to the “Skills” Smart Table.
Result — When a resume is processed, the system extracts skills and populates the “Skills” table with detailed rows (e.g., “Python - Expert”, “Java - Beginner”, “AWS - Intermediate”) linked back to the specific candidate via the many-to-many relationship.

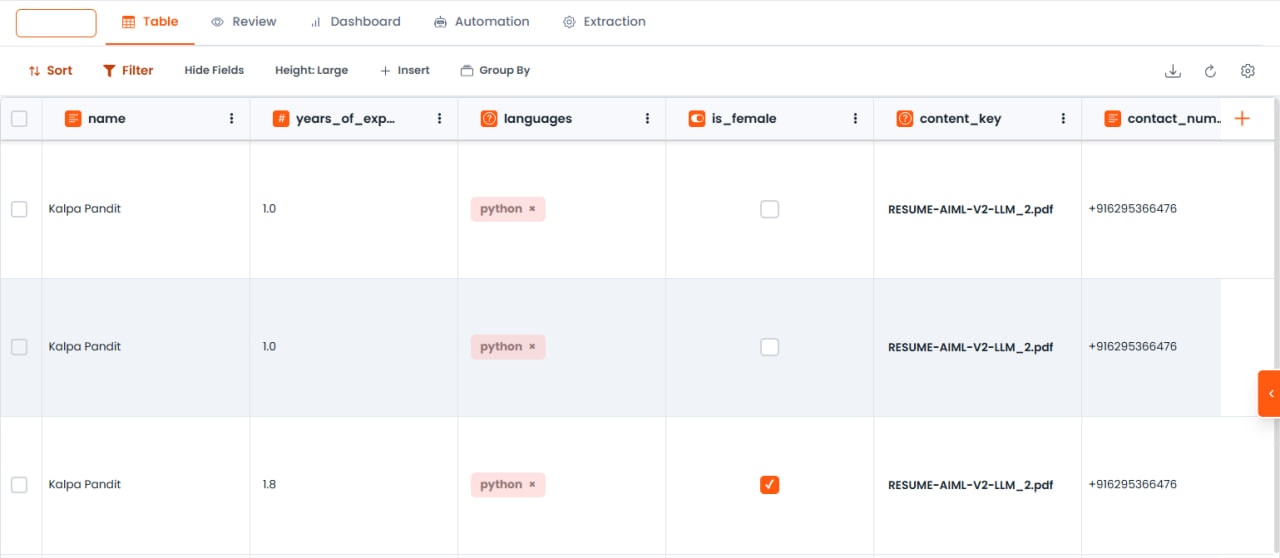

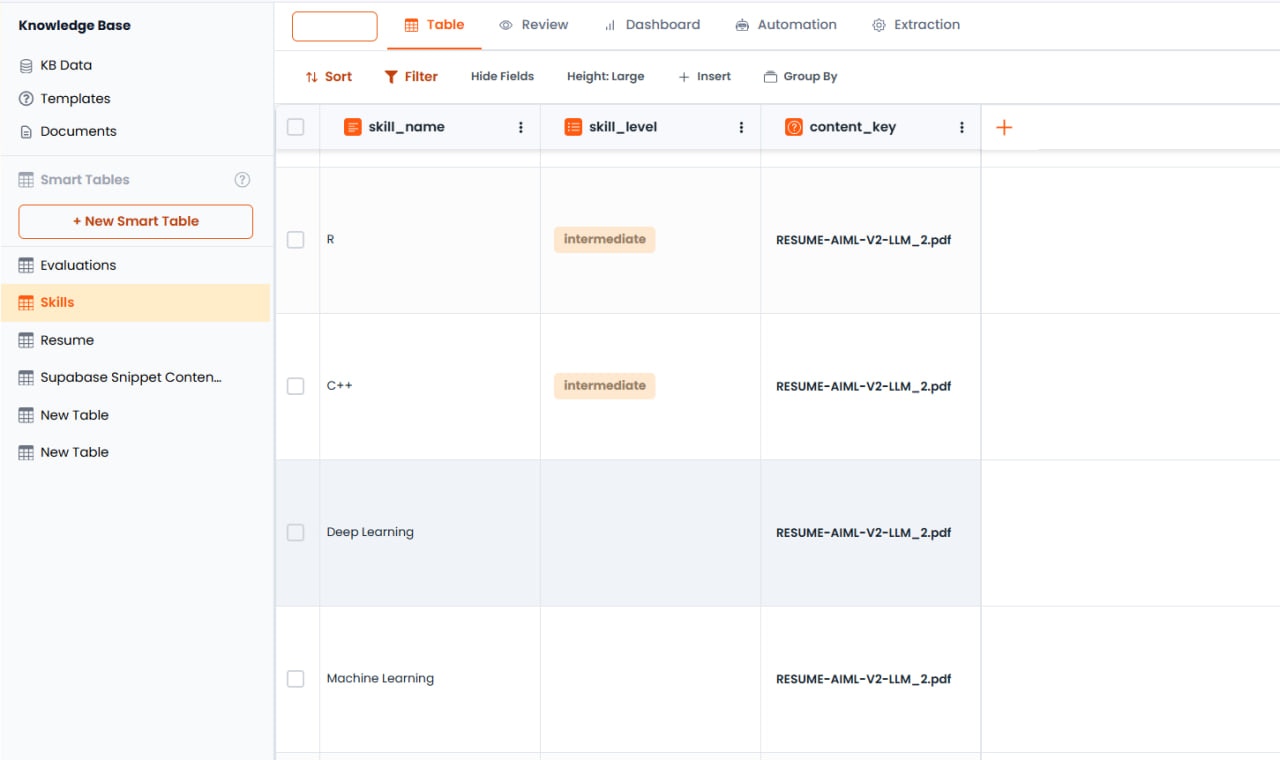

Viewing Collection Data

When viewing the main table (e.g., Resumes), the Collection field displays a link to the related entries. Clicking on it navigates to the linked table (e.g., Skills) where you can see all the detailed entries for that candidate. The relationship is bidirectional — you can view which resume each skill belongs to by checking the Content Key in the Skills table.

Data Management

Once data is populated, you have several tools to manage and organize it.

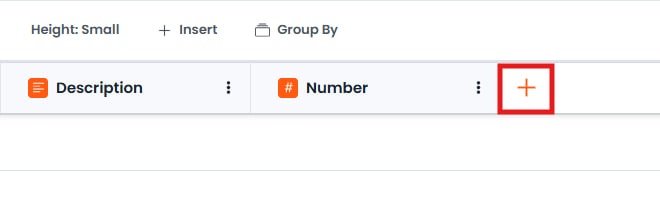

Views and Tabs

Smart Tables provide two views:

Table View — The default spreadsheet-like view for viewing and editing rows and columns
Dashboard View — A visualization view where you can create charts and widgets to analyze your data

Adding and Managing Rows

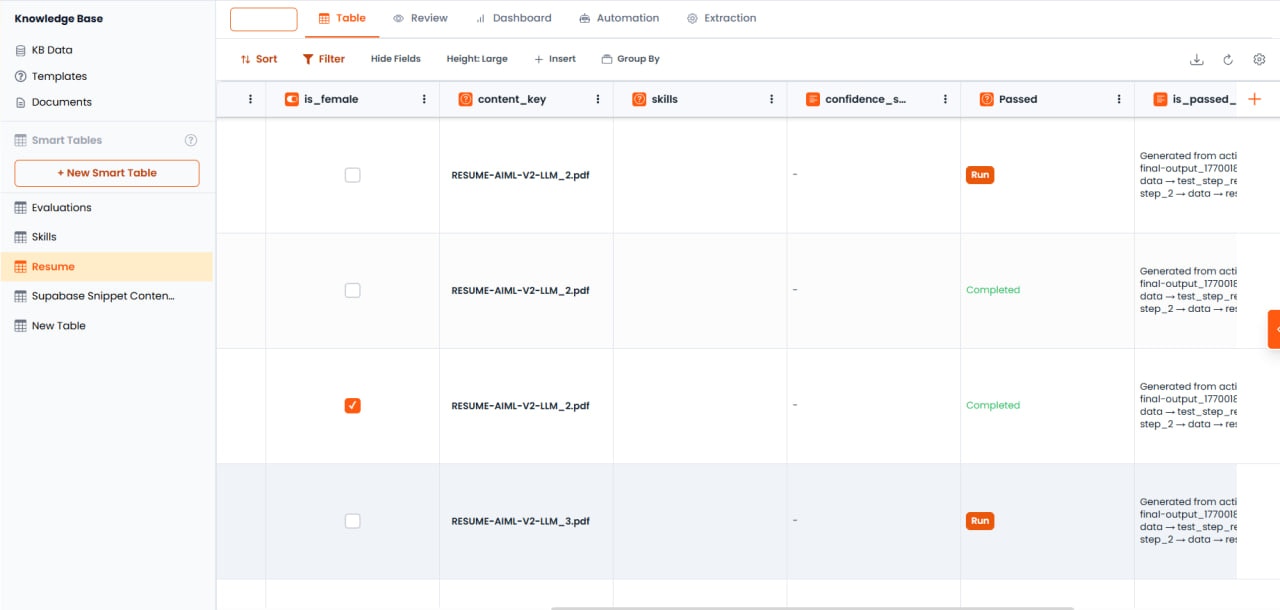

Insert Row — Click Add Row or Insert Row to manually add a new blank row
Automatic Row Creation — When a document is uploaded and assigned to a Smart Table, a new row is automatically created and populated with extracted data

Editing and Re-computing

Manual Edit — Click any cell to manually update the value

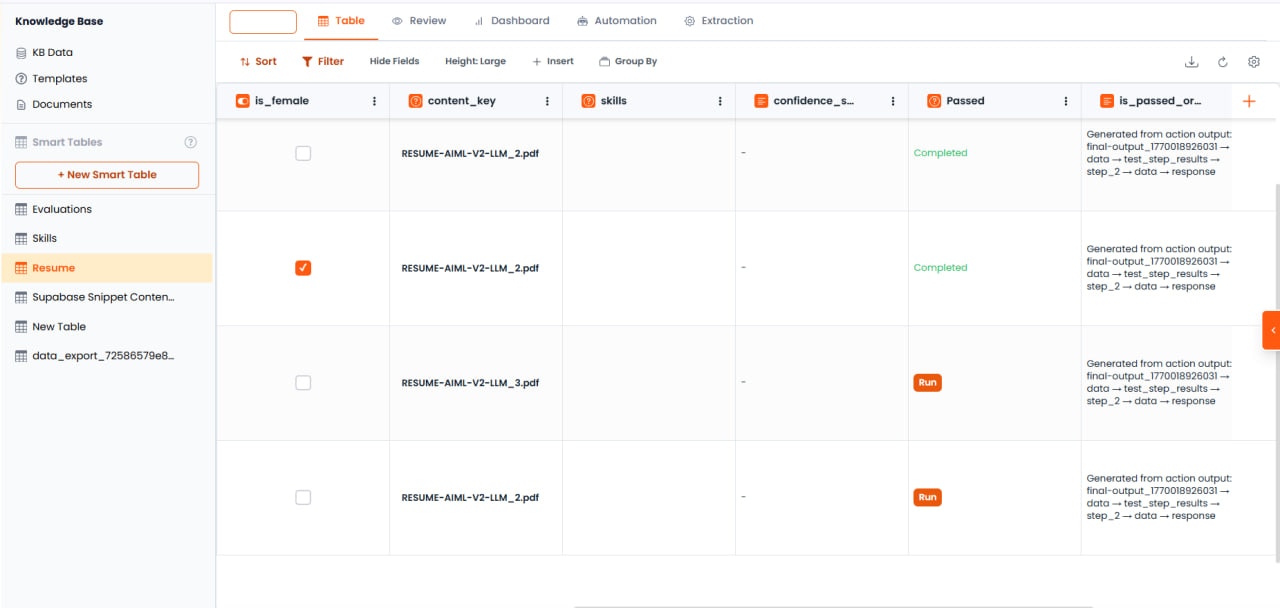

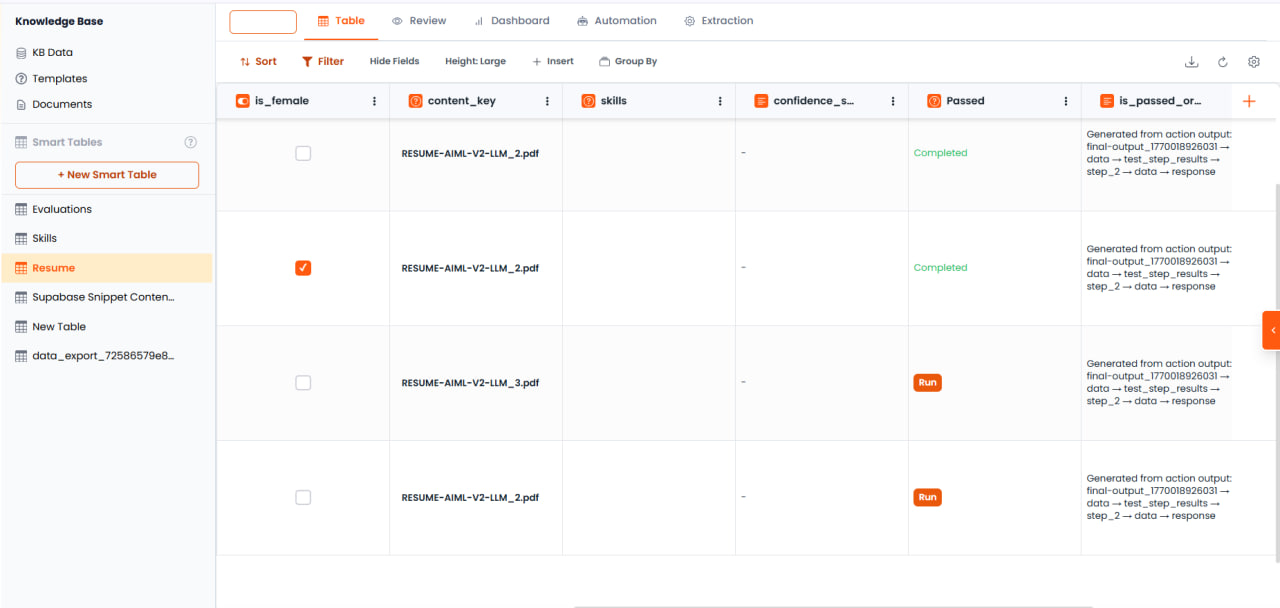

Execute Cell/Row — For LLM-generated or Agent-generated fields, click Execute Cell or Execute Row to compute or refresh that row’s data
Re-compute All — Refreshes all rows simultaneously. Useful after updating column descriptions or agent configurations to re-process the entire dataset

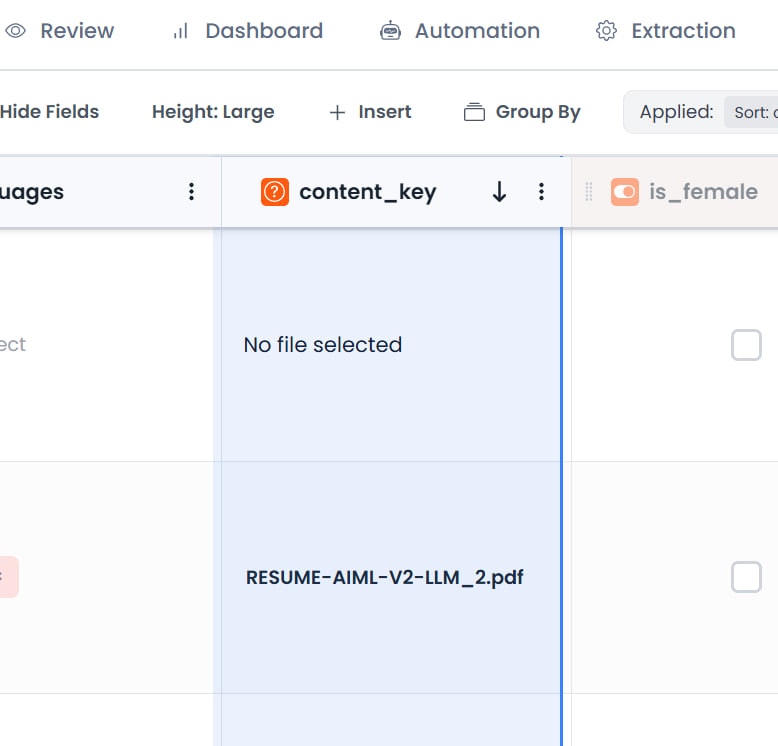

Each row is automatically assigned a unique Content Key identifier that links it back to the source document. This enables traceability between extracted data and original files.

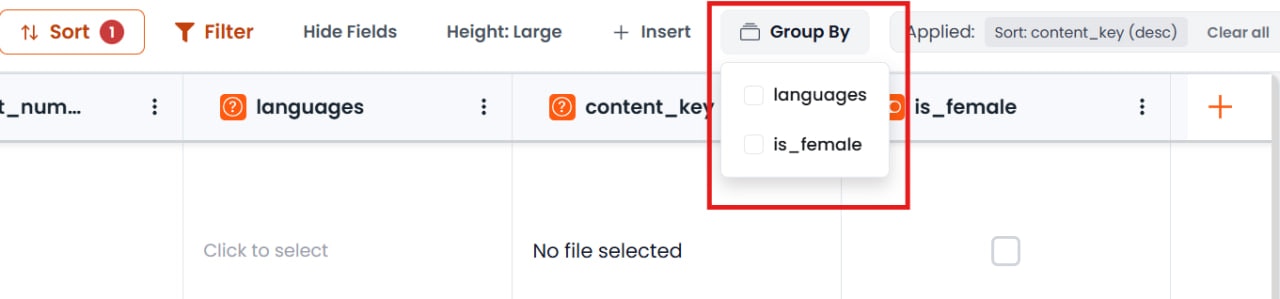

Grouping and Organizing

You can group data by specific columns to organize the view. For example, grouping a candidate list by the “Language” multi-select field lets you see all Python developers together. Columns can also be rearranged by dragging and repositioning them in the table view.

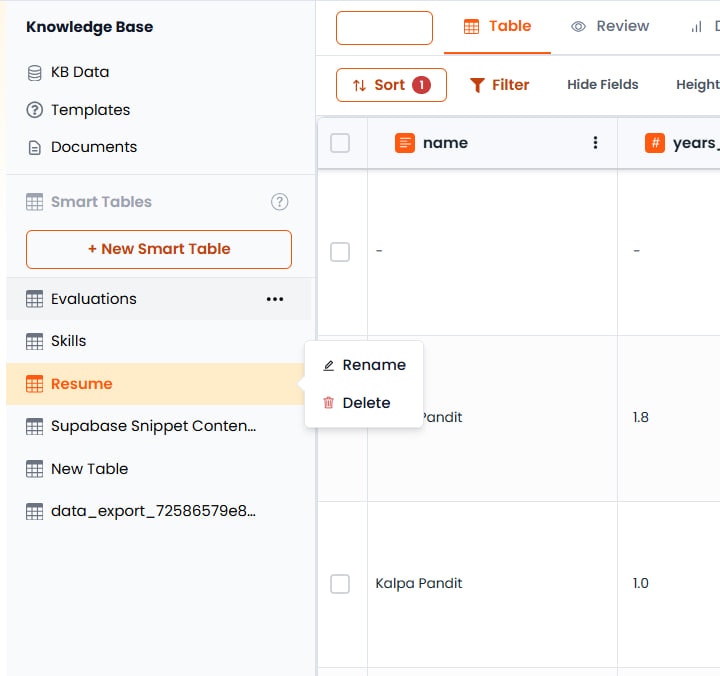

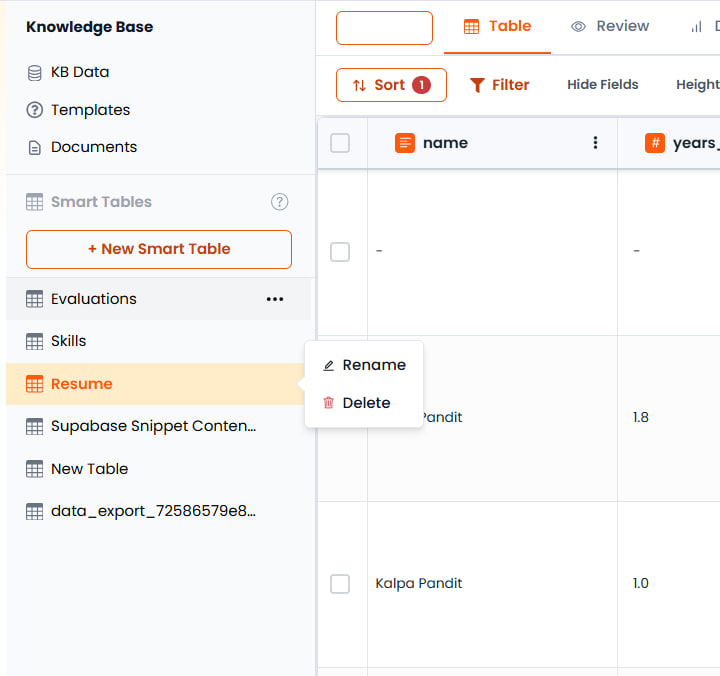

Renaming Smart Tables

Click on the table name at the top and enter a new name. This helps organize multiple tables with descriptive identifiers (e.g., “Resumes”, “Skills”, “Evaluations”).

Deleting Fields and Rows

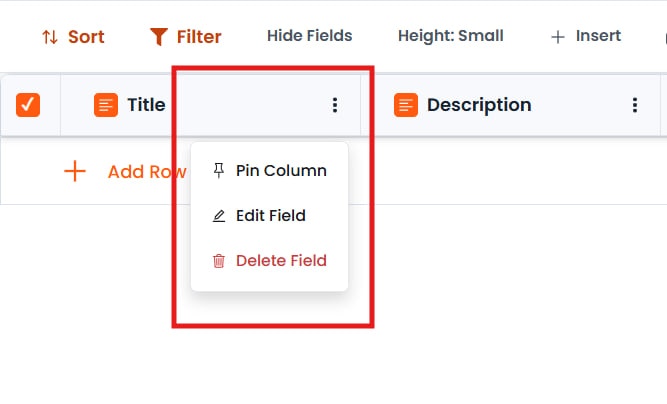

Delete Column — When editing a column configuration, select Delete Field to remove the column entirely
Delete Row — Click on a row and select Delete to remove individual entries

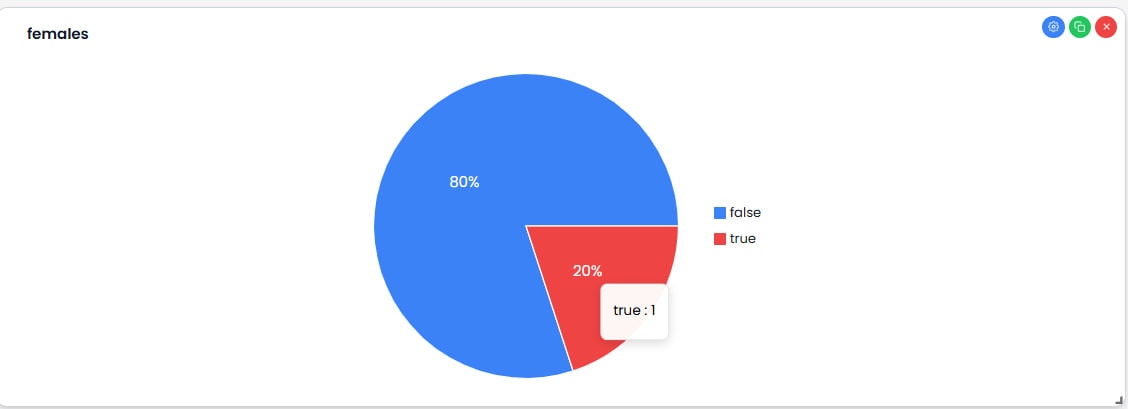

Dashboards and Visualization

Smart Tables include a built-in Dashboard view to visualize stored data.

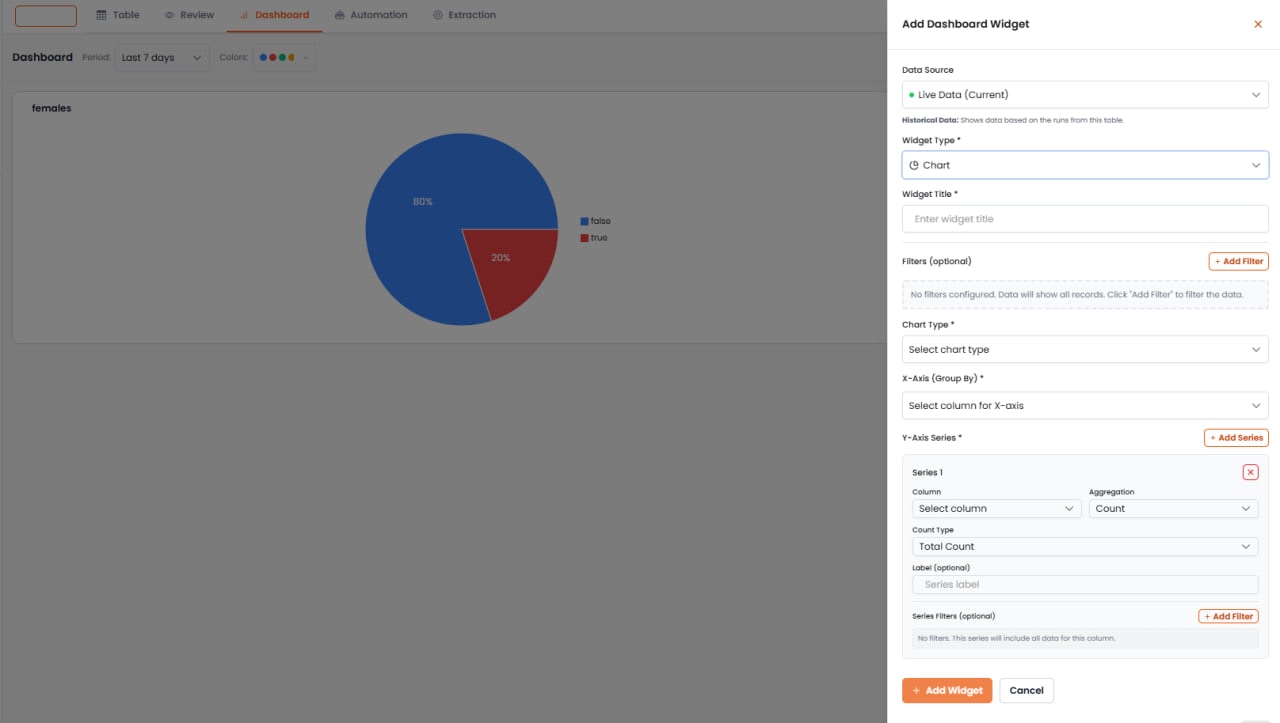

Creating Widgets

Navigate to the Dashboard tab within the Smart Table
Click Add Widget
Configure the chart:
- Widget Title — Provide a descriptive title (e.g., “Total Candidates by Gender”)
- Chart Type — Select from Pie Chart, Bar Chart, Line Chart, and others
- X-Axis (Category) — Select the grouping field (e.g., Is Female)
- Y-Axis (Value) — Select the metric to measure, with aggregation functions like Count, Sum, or Average
- Y-Series Column Name — Optionally customize the label shown in the chart legend
Save the widget to add it to the dashboard

Querying Smart Tables via Agents

One of the most powerful features of Smart Tables is the ability to query structured data using natural language through an Agent.

Setup Process

Create Agent

Go to the Agent builder and create or open an existing agent.

Configure Toolkits

Add the Database Manager toolkit to the agent.

Select Smart Tables

In the toolkit settings, select one or more Smart Tables the agent should have access to. This allows the agent to query across multiple related tables simultaneously.

Configure Query Options

Deselect unnecessary options like “Database Query” or “Database Schema” if you only want the agent to access Smart Table data specifically.

Save and Test

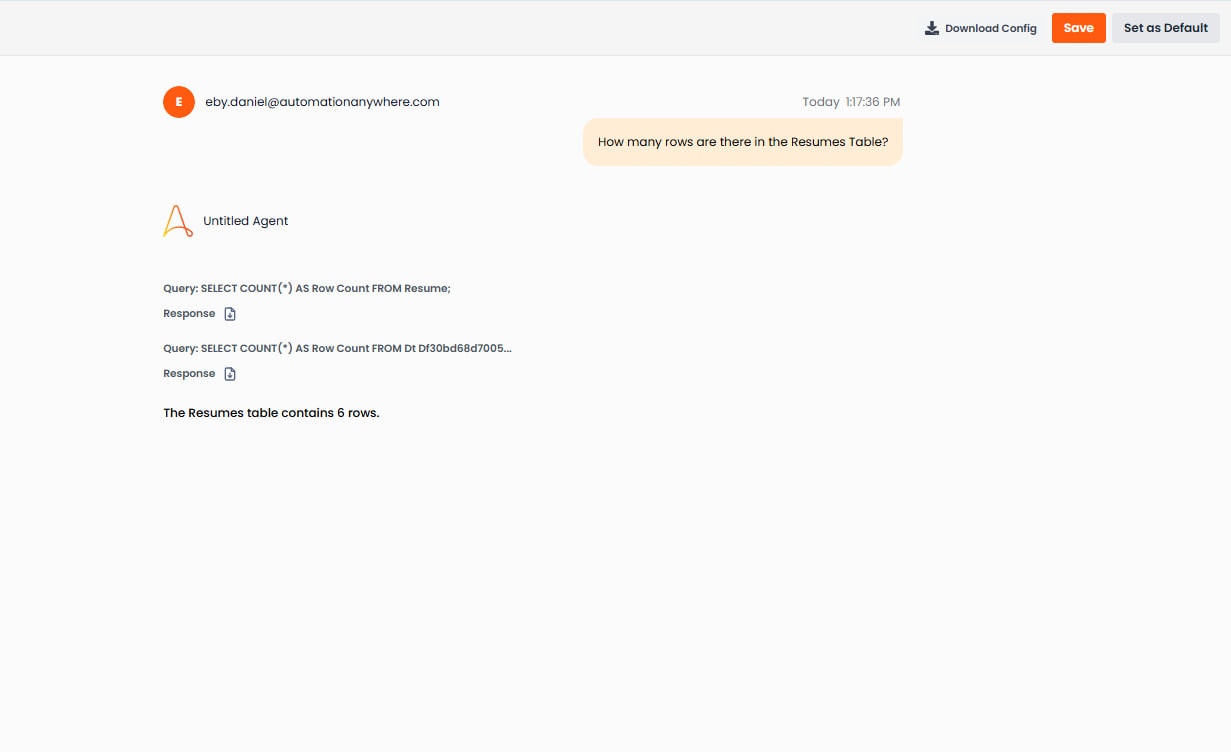

Open the agent chat and ask questions in natural language, for example:

“How many candidates have more than 5 years of experience?”
“List all Python experts”
“How many rows are there in the Resumes table?”

The agent executes a query against the Smart Table and returns the answer in natural language.

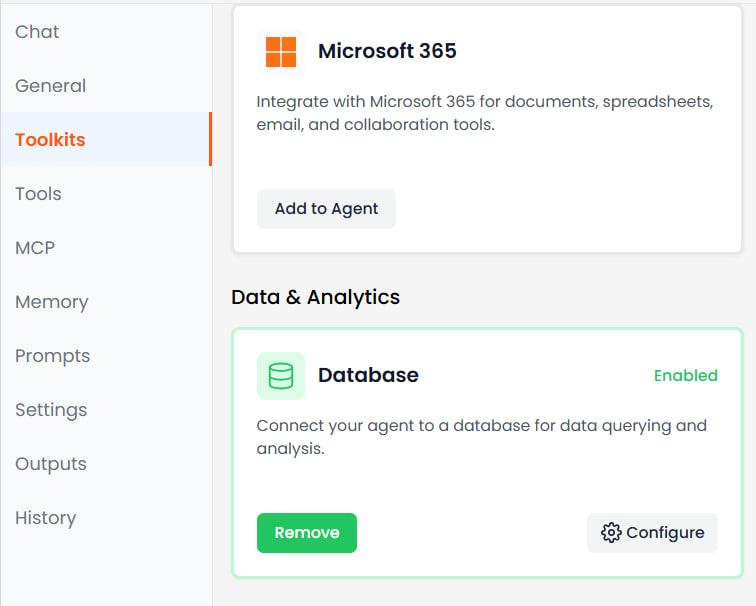

Agent builder with Database Manager toolkit

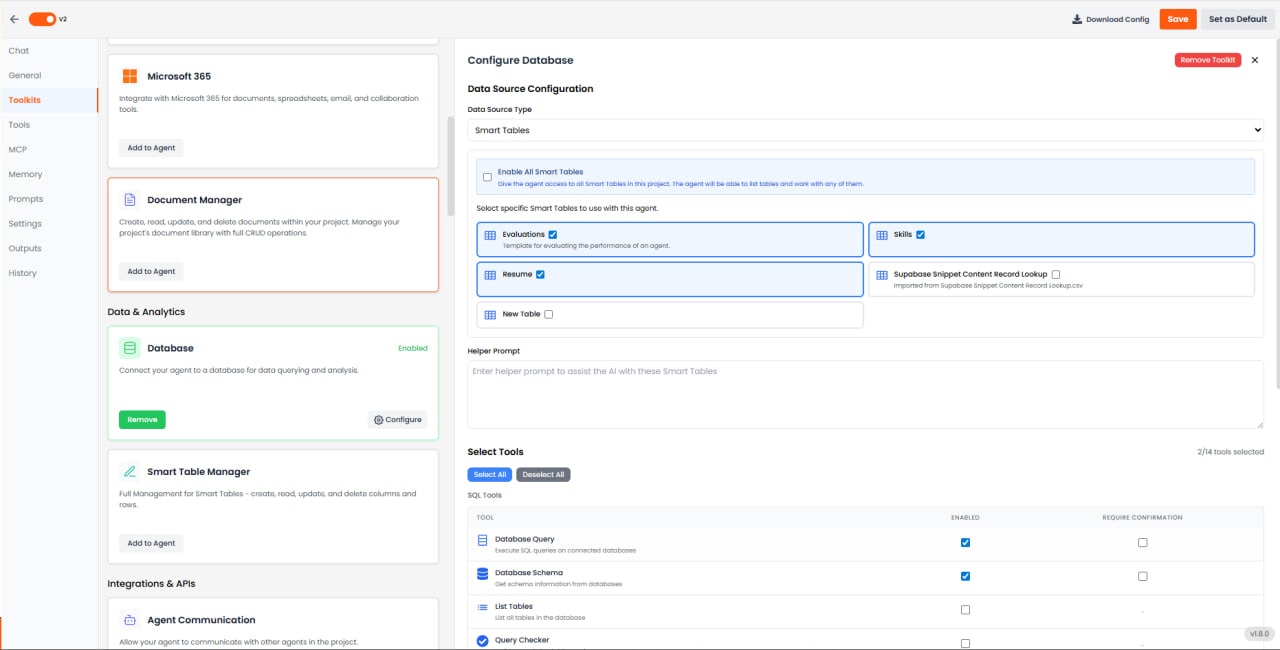

Database Manager settings showing Smart Table selection

Templates

Templates accelerate setup by providing pre-configured column structures for common use cases. You can select from existing templates but cannot create custom templates through the UI.

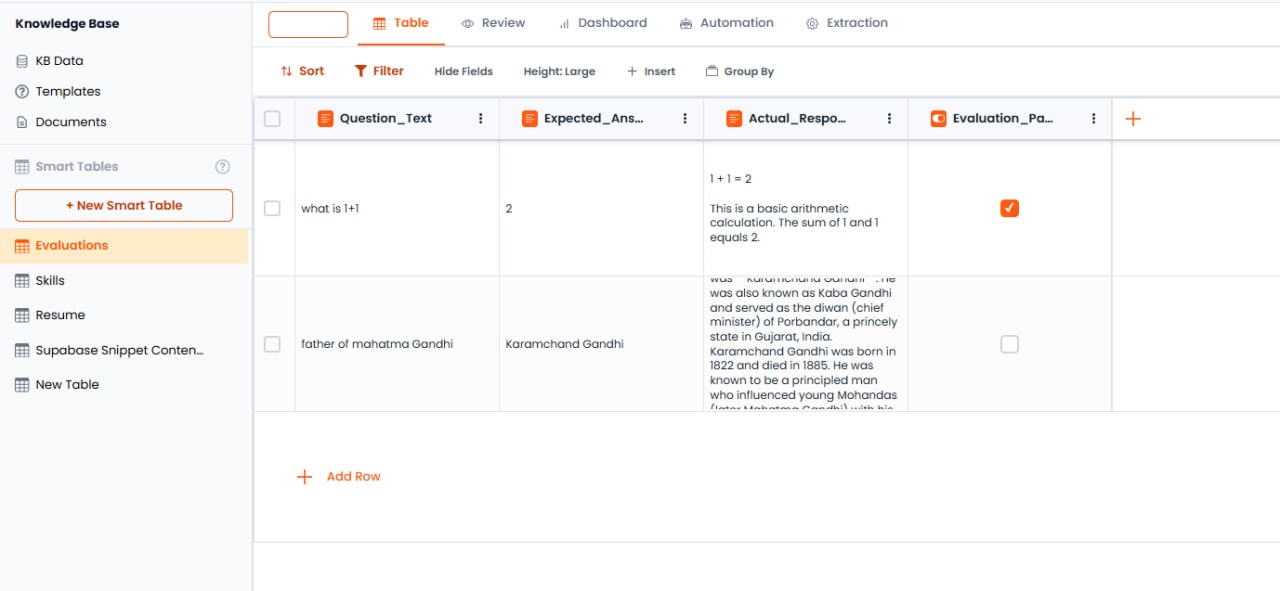

Evaluation Template

Designed for testing Agent performance and validating AI responses. Includes:

Question Text — The input prompt for the agent (User Input)
Expected Answer — The ground truth or correct answer (User Input)
Actual Response — Populated by the agent during the evaluation run (Agent Generated)
Evaluation Status — Compares Actual Response to Expected Answer and returns a pass/fail percentage (Comparison)

Using the Evaluation Template:

Create a Smart Table from the Evaluations Template
Add rows with your test questions and expected answers
Configure the Agent field to connect to your AI agent
Execute individual rows or run Re-compute All to test all questions
Review the Actual Response and Evaluation Status to assess agent performance

Best Practices

Column Descriptions — Write clear, descriptive text for each column to guide the LLM during extraction. For example, name a column “Years of Experience” and add: “Total years of professional work experience found in the resume.”
Data Types — Use specific types (Number vs. Text) to enable accurate sorting, filtering, and chart creation. Use Number for “Years of Experience” rather than Text.
Format Selection — Choose appropriate formats per field type. Use Phone Number format for contact fields; use Currency format for monetary values.
Collections — Use Collections for complex lists (Skills, Certifications, Education History) to maintain data integrity and enable deeper querying.
Testing — Test with one or two documents first to verify column descriptions are guiding the AI correctly before bulk uploading.
Quick Upload — Enable Quick Upload when assigning a Smart Table during upload to extract and populate data immediately.
Re-apply Extraction — If you modify column definitions, re-assign the Smart Table to existing documents to re-extract data with the updated configuration.
Comparison Fields — Use Comparison for validation scenarios, such as comparing expected vs. actual results in QA workflows.

Smart Tables can also trigger and interact with Workflows (Actions), enabling advanced logic such as “If Resume Qualifies, send email.” Refer to the Workflow Automation documentation for details.

Before You Start

Authentication

Use the same credentials as other project APIs — API key / secret or your app’s auth headers.

Access

The account needs permission to use the project’s Knowledge Base features. Without it, these calls return 403.

Base URL

Use your environment’s API host (e.g. https://ai-api.automationanywhere.com). Paths below are appended to that host unless your deployment uses a global prefix.

1. List Existing Tables

GET /project/{project_id}/data-types

Returns a list of all data types for the project. Each item includes an id you use as data_type_id in subsequent requests.

2. Create a New Smart Table

POST /project/{project_id}/data-types

Body Parameters

Field	Required	Description
`title`	Yes	Name shown in the UI.
`description`	Yes	Short description.
`metadata`	No	Defines initial columns: each key is a column name; each value is a sample used to infer the column type.

{
  "title": "Support tickets",
  "description": "Inbound requests",
  "metadata": {
    "subject": "Sample subject",
    "priority": 1,
    "open": true,
    "tags": ["billing", "login"]
  }
}

Save the returned data_type_id — you’ll need it for all row operations.

3. Add or Change Columns

POST /project/{project_id}/data-type/{data_type_id}/column

{
  "column_name": "status",
  "column_type": "text",
  "description": "Workflow status",
  "options": {},
  "default_value": "open"
}

Confirm exact column_type values with your OpenAPI or integration docs for your environment.

4. Add a Single Row

POST /project/{project_id}/data-type/{data_type_id}/row

Column values go inside the metadata object.

{
  "metadata": {
    "subject": "Cannot reset password",
    "priority": 2,
    "open": true,
    "tags": ["auth"]
  }
}

Keys in metadata must match existing column names. Do not include id — the server assigns it automatically.

5. Add Many Rows at Once

POST /project/{project_id}/data-type/{data_type_id}/rows

Each row is a plain object of column values — not nested under metadata.

{
  "rows": [
    { "subject": "Issue A", "priority": 1, "open": true },
    { "subject": "Issue B", "priority": 3, "open": false }
  ]
}

6. Create a Table from a File

POST /project/{project_id}/import-table

Format: multipart/form-data with a file upload (CSV or Excel).

Field	Description
`title`	Table name shown in the UI.
`description`	Short description.
`column_mappings`	JSON string describing how file columns map to table columns and types.
`file`	The CSV or Excel file to import.

Quick Reference

Action	Method	Path
List tables	`GET`	`/project/{project_id}/data-types`
Create table	`POST`	`/project/{project_id}/data-types`
Add column	`POST`	`/project/{project_id}/data-type/{data_type_id}/column`
Add one row	`POST`	`/project/{project_id}/data-type/{data_type_id}/row`
Add many rows	`POST`	`/project/{project_id}/data-type/{data_type_id}/rows`
Import from file	`POST`	`/project/{project_id}/import-table`

Troubleshooting

403 — Forbidden

The user or API key does not have access to the project or its Knowledge Base section. Verify that the account has the correct permissions enabled.

500 on Row Insert

Usually caused by a column name mismatch or a value whose type doesn’t match the column definition. Check that all keys correspond to existing column names and that value types match (e.g. don’t send a string for a number column).

Single vs. Bulk Row Body Format

The request body structure differs between the two endpoints:

Single row: { "metadata": { ... } }
Bulk rows: { "rows": [ { ... }, { ... } ] } — no metadata wrapper per row.

Get Started!

Offerings

Chat

Agents

Knowledge Base

Workflows

Interfaces

Public Chatbot

Settings

My Account

Platform Admin

SDK

General Information

Change Logs

​Accessing Smart Tables

​Creating Smart Tables

​Method A: Create Empty Smart Table

​Method B: Create from Template

​Method C: Import from File

​Column Types and Configuration

​Configuring Columns

​Field Types and Formats

​Tool Sources

​Data Extraction (Document Processing)

​Workflow: Resume Extraction Example

​Collections and Relationships

​Example: Skills Mapping

​Viewing Collection Data

​Data Management

​Views and Tabs

​Adding and Managing Rows

​Editing and Re-computing

​Grouping and Organizing

​Renaming Smart Tables

​Deleting Fields and Rows

​Dashboards and Visualization

​Creating Widgets

​Querying Smart Tables via Agents

​Setup Process

​Templates

​Evaluation Template

​Best Practices

​Before You Start

​1. List Existing Tables

​2. Create a New Smart Table

​Body Parameters

​3. Add or Change Columns

​4. Add a Single Row

​5. Add Many Rows at Once

​6. Create a Table from a File

​Quick Reference

​Troubleshooting

Accessing Smart Tables

Creating Smart Tables

Method A: Create Empty Smart Table

Method B: Create from Template

Method C: Import from File

Column Types and Configuration

Configuring Columns

Field Types and Formats

Tool Sources

Data Extraction (Document Processing)

Workflow: Resume Extraction Example

Collections and Relationships

Example: Skills Mapping

Viewing Collection Data

Data Management

Views and Tabs

Adding and Managing Rows

Editing and Re-computing

Grouping and Organizing

Renaming Smart Tables

Deleting Fields and Rows

Dashboards and Visualization

Creating Widgets

Querying Smart Tables via Agents

Setup Process

Templates

Evaluation Template

Best Practices

Before You Start

1. List Existing Tables

2. Create a New Smart Table

Body Parameters

3. Add or Change Columns

4. Add a Single Row

5. Add Many Rows at Once

6. Create a Table from a File

Quick Reference

Troubleshooting
